Brantz rally trip meters

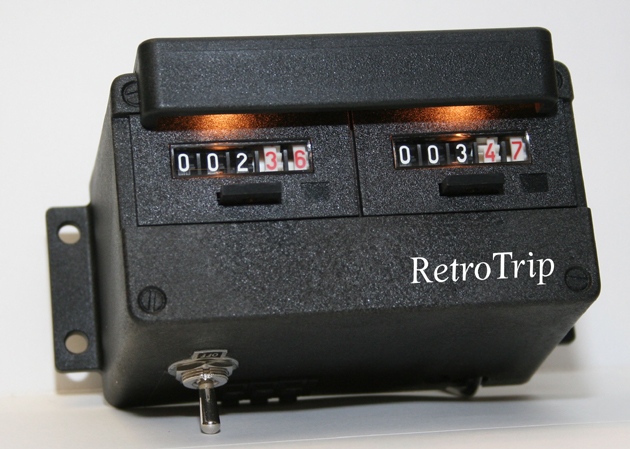

BR9C - Retrotrip 2
'Classique' Tripmeter

Retrotrip 2 Classique - Tripmeter - LATEST MODEL

Introducing the famous Brantz RetroTrip rally tripmeter. This unit has been specifically designed to complement historic or retrospective motorsport and is approved for use on many major historic and classic rallies.

The RetroTrip has sufficient functions for all the major competitive historic events and features fiddle-proof electro-mechanical clicking digits. The unit offers instant 'one in a thousand' calibration for any wheel changes and, like all Brantz meters, accuracy is excellent. The RetroTrip can be used with a wide range of motion sensors: the wheel type sensor or speedometer type being the most popular. As ever, the fitting and calibration of the meter is a simple and efficient task.

N.B. Older cars with 6V electronics or poorly performing 12V charger systems should use the
BRANTZ POWER CONDITIONER to produce a correct and reliable voltage source. (see below)

Click to enlarge
Requires a Sensor

Sizes in mm
H70 x W140 x D80

£279.00

BR9CM - Retrotrip 2
'Mulsanne' Tripmeter

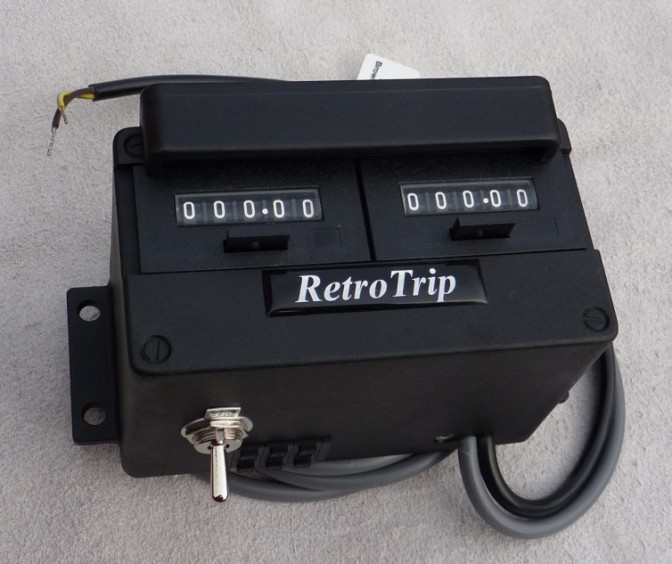

Retrotrip 2 Mulsanne - Tripmeter - NEW MODEL

Exactly the same as above but with all black counters, which radically alters the appearance.
This unit has been specifically designed to complement historic or retrospective motorsport and is approved for use on many major historic and classic rallies.

N.B. Older cars with 6V electronics or poorly performing 12V charger systems should use the
BRANTZ POWER CONDITIONER to produce a correct and reliable voltage source. (see below)

Click to enlarge
Requires a Sensor

Sizes in mm
H70 x W140 x D80

£299.00

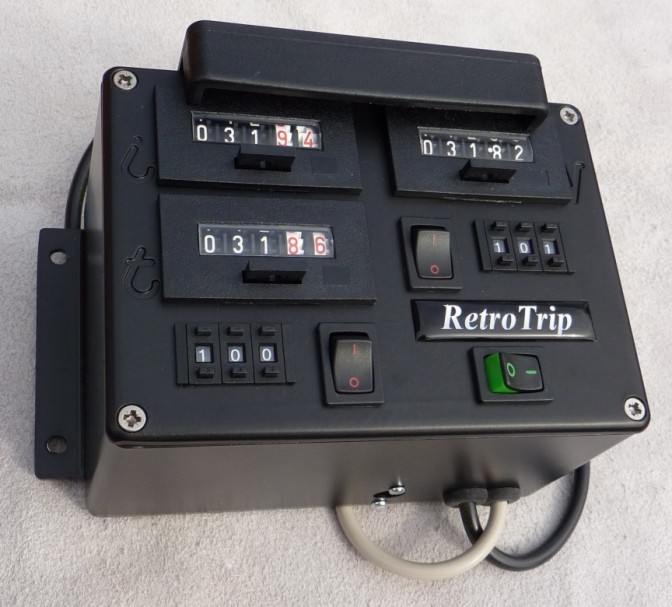

BR10C - Retrotrip 3 'Classique' Tripmeter		Retrotrip 3 Classique - Tripmeter - LATEST MODEL The RetroTrip 3 is a simple evolution of the ever popular RetroTrip 2 mechanical rally tripmeter. It has all the same features such as accurate one-in-a-thousand calibration and mechanical read-outs which make the tripmeters from Brantz eligible for historic type rallies throughout the world. Where the RetroTrip 3 Classique differs is that it contains two completely separate and independent tripmeters in the same box. One tripmeter drives the normal two counters on the left of the box for total and intermediate distances, whilst a second tripmeter with its own calibration system drives a third readout on the right of the box. Both tripmeters are fed from the same single sensor fitted to either the speedometer cable or the road wheel. All counters can be zeroed independently while the counter on the top row can also be disconnected via a rocker control. N.B. Older cars with 6V electronics or poorly performing 12V charger systems should use the BRANTZ POWER CONDITIONER to produce a correct and reliable voltage source. (see below)
Click to enlarge Requires a Sensor
Sizes in mm H100 x W76 x D40	£379.00

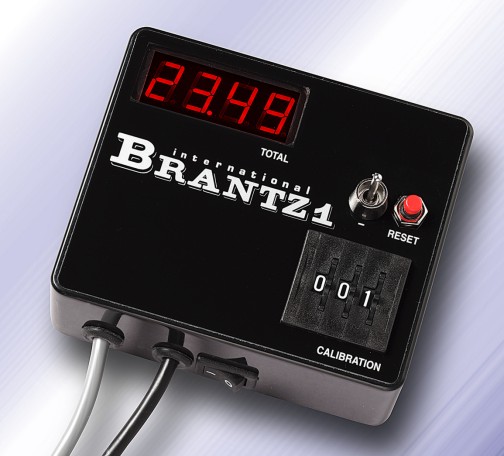

BR13 - Brantz
International 1

Brantz International 1 Tripmeter

A basic International 1 single display rally tripmeter, ideal for road rallying and club level stage events.

The International 1 features the same commitment to quality and accuracy as all Brantz tripmeters. Our excellent 0.6 inch light emitting display and accurate calibration systems are coupled with a power switch and fuse to offer the very best entry level tripmeter.

Has remote zero unit fitted.

Click to enlarge
Requires a Sensor

Sizes in mm
H100 x W76 x D40

£119.00

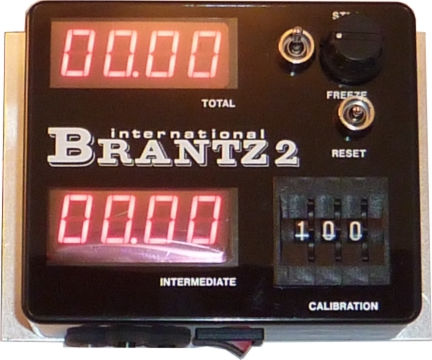

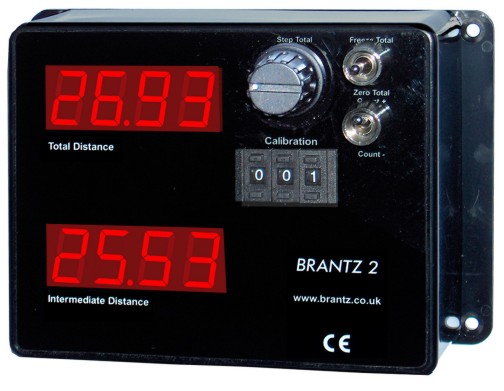

BR6 - Brantz
International 2 Pro

Brantz International 2 Pro Tripmeter

The International 2 is a highly accurate unit featuring very large light emitting displays of 0.6 inches and is ideal for stage rally applications where a dual readout is required. Brantz rally tripmeters calibrate electronically to indicate hundredths of a mile/kilometer, while a unique Brantz feature allows the Total readout to shift the decimal point of the distance meter to give a maximum value of 999.9 miles or kilometers - useful for the long distance competitions. Changes to wheel sizes or gearing ratios are instantly accommodated by the calibration. A remote reset button is provided as standard equipment to zero the lower Intermediate display. Controls on the meter will zero both Total and Intermediate values whilst also able to freeze the Total display. In addition the Total can be stepped, fast or slow, to any reading to align with the rally organisers road book if a deviation from the intended route has been made.

Has remote zero unit fitted.

Click to enlarge
Requires a Sensor

Sizes in mm
H100 x W76 x D40

£159.00

BR7 - Brantz
International 2S Pro

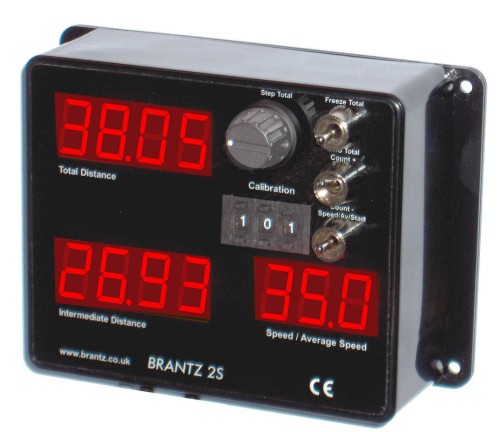

Brantz International 2 'S' Pro Tripmeter

The International 2 'S' Pro is the natural progression from the formidable International 2 rally tripmeter. The unit features the same highly visible LED display, with the addition of a highly accurate speedometer. The technical specification is similar to the International 2 unit, with the additional speedometer able to calculate and display both current and average speed.

Has remote zero unit fitted.

Click to enlarge
Requires a Sensor

Sizes in mm
H100 x W76 x D40

£189.00

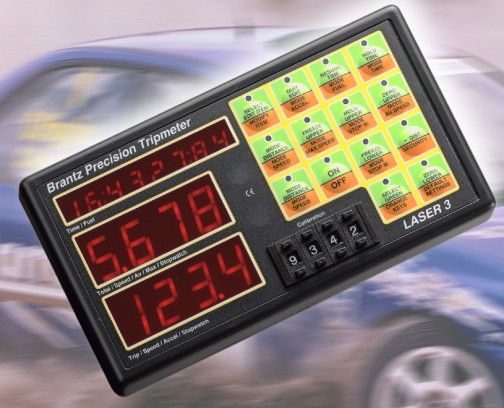

BR34 - Brantz Laser 3		Brantz Laser 3 Tripmeter The Brantz Laser 3 provides the greatest degree of competitive edge in professional level rallying. The Brantz Laser 3 Rally Computer is a sophisticated high precision instrument which shows via red LED readouts Time of Day including hundredths of a second and has two stopwatches. Six digit distance (to three decimal places) is viewed via shiftable four digit windows. Speed information includes current, maximum and average speeds. A leap forward in technology allows optimisation of car performance tuning using the acceleration figures to 60, 100 and 120 mph and kph from 0, 30, 50 and 70 mph and kph, along with times for a standing start quarter mile or kilometer, and a standing start mile or kilometer. A programmable digital fuel gauge is provided which will read a gauge which stands unpowered, or is already part of a vehicle's electrical system.
Click to enlarge Requires a Sensor
Sizes in mm H80 x W140 x D35	£230.00

BR22 - Brantz Laser 3 Radio Remote Zero Unit		Brantz Laser 3 Radio Remote Zeroing Unit Radio Remote Zero Box with 2 Buttons Zero both Inter & total independently Attach with Velcro NO LONGER AVAILABLE - SEE BELOW

Sizes in mm H80 x W60 x D25	£---

BR22a - Brantz Remote Zero Unit		Brantz Remote Zeroing Unit Hard wires in to Laser 3 meter. This zeros the intermediate display only. Complete with a 1 metre flexible cable which allows the unit to be attached to the navigators seat etc. with a velcro pad. Longer cables are available on request.

	£19.50

BR1 - Brantz Speedo Cable Sensor		Brantz Universal Speedometer Cable Sensor Accepts most Speedometer Cables Colour coded connectors for easy installation - Works with all Brantz Tripmeters

	£27.50

BR2a - Brantz Wheel Probe Sensor		Brantz Probe Sensor M12 x 1mm thread N.B. Will not operate old meters (pre 2004) A return to base modification is available on these meters to allow the use of new sensors.

	£27.50

BR4 - Brantz M18 Gearbox Sensor		Brantz M18 x 1.5mm thread, screw onto gearbox output, with 'square' drive Check the gearbox output size prior to ordering May need minor mods Fits most Ford/GM/Vauxhall/VW/Skoda/Lada/Fiat Pre-wired ready to fit - Works with all Brantz Tripmeters

	£35.00

BR3 - Brantz M22 Gearbox Sensor		Brantz M22 x 1.5mm thread, screw onto gearbox output, with 'lug' drive Check the gearbox output size before ordering. Sq drive may need minor modifications. Fits most Japanese gearbox types - Works with all Brantz Tripmeters

	£32.50

BRH2 - Hall Effect Sensor		Hall Effect sensor and two magnets with holders and shaft fastners. The Magnets are attached to a revolving driveshaft or prop shaft. **Works with all Brantz Tripmeters**

	£80.00

BR43 - Brantz Plug Kit		Brantz - Plug Kit (factory fitted to unit). Allows sharing your Tripmeter between vehicles and removal for security.
Only available when ordering new unit
	£25.00

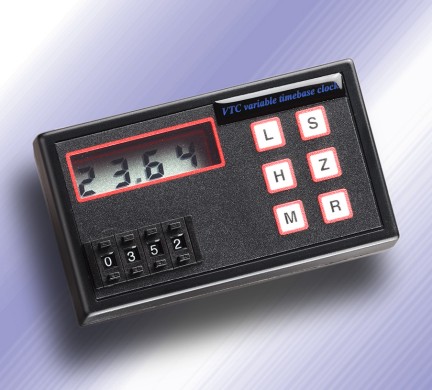

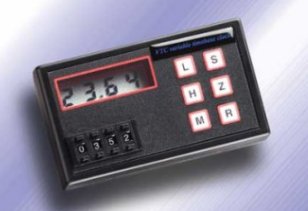

BVTC01 - Timer

Variable Timebase Clock (Electronic Speedtable)

Historic Rallying Events - Average Speed

Fits in the pocket much better then old fashioned average speed tables!

Click to enlarge

£165.00

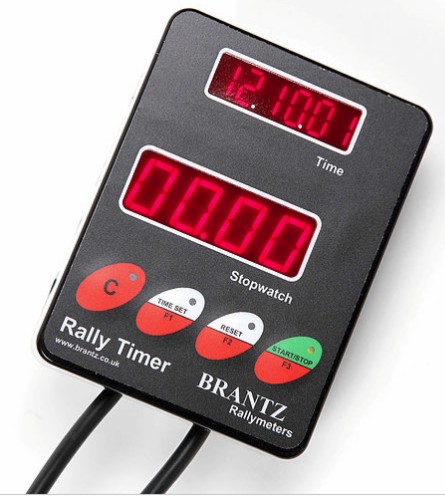

BR32 - Brantz Rally Clock

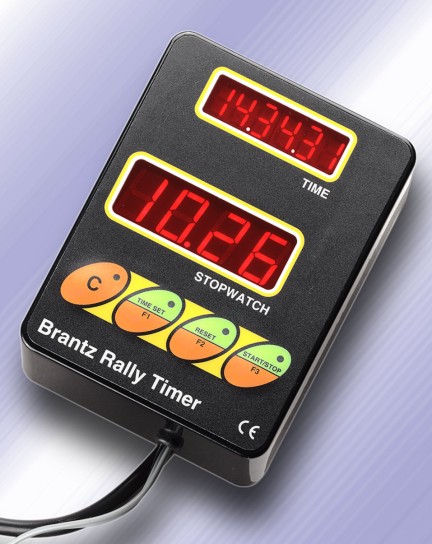

Brantz Rally Clock Pro - LED digital clock and stopwatch

The BRANTZ Rally Timer is built at the same height and with the same bright red digits as the BRANTZ Internationals and sits comfortably along side them. The six digit clock shows as 12 or 24 hr formats and holds the time of day when the remote button (provided as standard) is pressed. The four digit stopwatch halts at the same moment. The stopwatch will show cumulative or re-zeroed elapsed time. A special function will allow the stopwatch to count seconds to 9999 instead of minutes and seconds if desired. This function is useful for historic rallying and other events which call for a seconds counter.

Click to enlarge

Sizes in mm
H70 x W100 x D40

£110.00

BR21 - Brantz Power Conditioner		Brantz Power Conditioner - Electrical power supply conditioning unit 6V to 14V Step up Unit (Inverter) 13.8V output - essential for Historic vehicles!

Sizes in mm H70 x W50 x D25	£35.00

BR341 - Brantz Laser Fitting Kit		Brantz Laser 3 Fitting Kit
	£12.50

BR5 - Brantz Dividing prescaler		Dividing prescaler interface for digitally pulsed electronic speedos Works with all Brantz Tripmeters

	£55.00
